| Category | Tractor clutch kit |
| Size | 8/9/10/11/12/13/14 Inch |
| Materials | Copper based type and cerametallic type |
| Use for | tractor |
Product support customization, if necessary,
contact us or leave a message

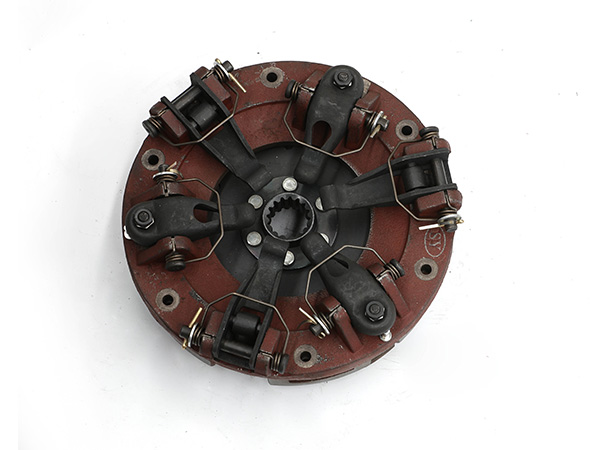

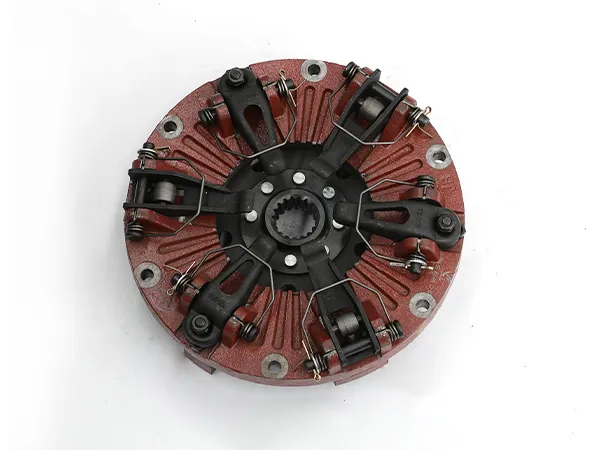

| Size | 8inch |
| Spline | 16 |
| Lever | 6 |
| Main Drive Plate | 200-35*30.29-16N |
| PTO Plate | 200-20.25*16.80-12N |
This tractor clutch kit suitable for 25-30HP tractors, it is widely used for many small horsepower tractors . This is a dual clutch kit ,8 inch 16 spline, lever 6 . It almost meet the requirements of all small tractors , clutch disc material is cerametallic.

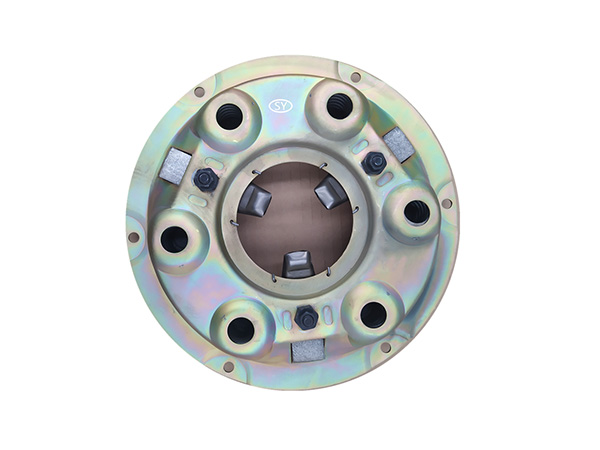

| Type | Single Clutch |
| Size | 9 inch |
| Main Drive Plate | 228-39*34.26-18 Teeth |
| PTO Plate | 228-24.75*21.23-15 Teeth |
| size of Main Plate | 228mm |
| size of PTO Plate | 228mm |
| Hub of Main Plate | 39*34.26-18 Teeth |
| Hub of PTO Plate | 24.75*21.23-15 Teeth |

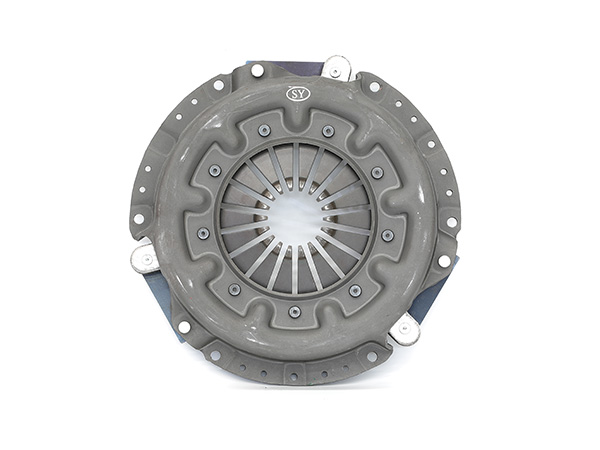

This slingle clutch plate suitable for YTO tractor 404 model. 9 inch and 18 spline.

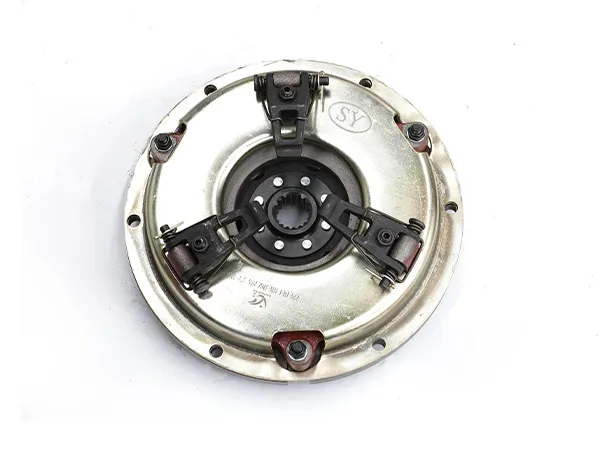

| Size | 9 inch |
| Drive Plate | 228MM, HUB 39*34-18N |
This tractor clutch kit suitable for YTO 50HP tractor X754 604 554 700 1254 354 1004 1304，also suitable for Jinma tractors.This tractor clutch kit is 11 inch ,as a dual clutch kit it has a lot of advantages such as low vibration and noise and smooth shifting ,etc.

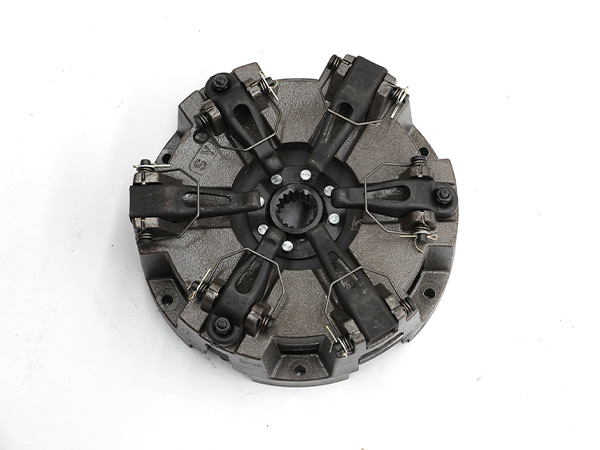

| Size | 10 inch |
| Drive Plate | 254-34*39-18N |
| size of Plate | 254mm |
This tractor clutch kit suitable for YTO 80HP tractor YTOX1254 X804 C1302 YTOX1004 X804 C502 ，actually this is a new type dual clutch kit can be used for many other tractors like Jinma .

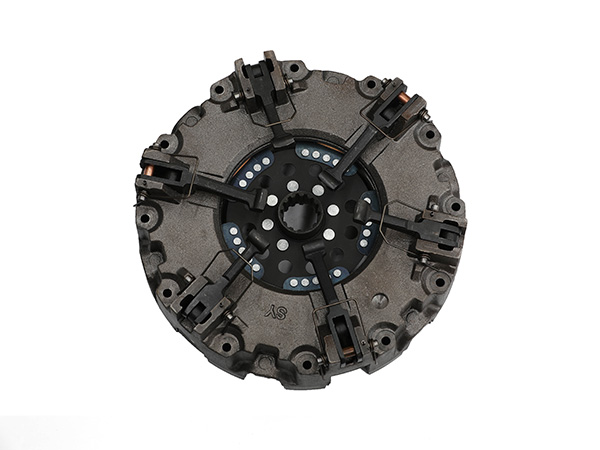

| Type | Dual Clutch |
| Size | 11 inch |
| Main Drive Plate | 280-40*35-14N |
| PTO Plate | 280-25*22-10N |
This tractor clutch kit suitable for Fiat tractors，replaces tractor spare parts 1930985 47583392. This is a dual clutch kit ,11 inch 14 splines. Actually it is not only used for Fiat tractors , it also can be used for many other tractors ,this type also has 18 spline.

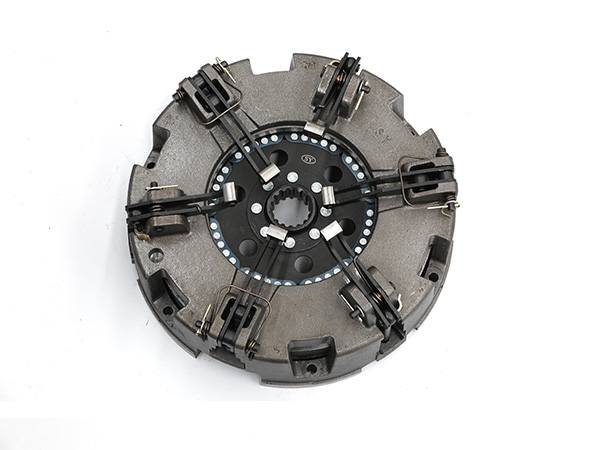

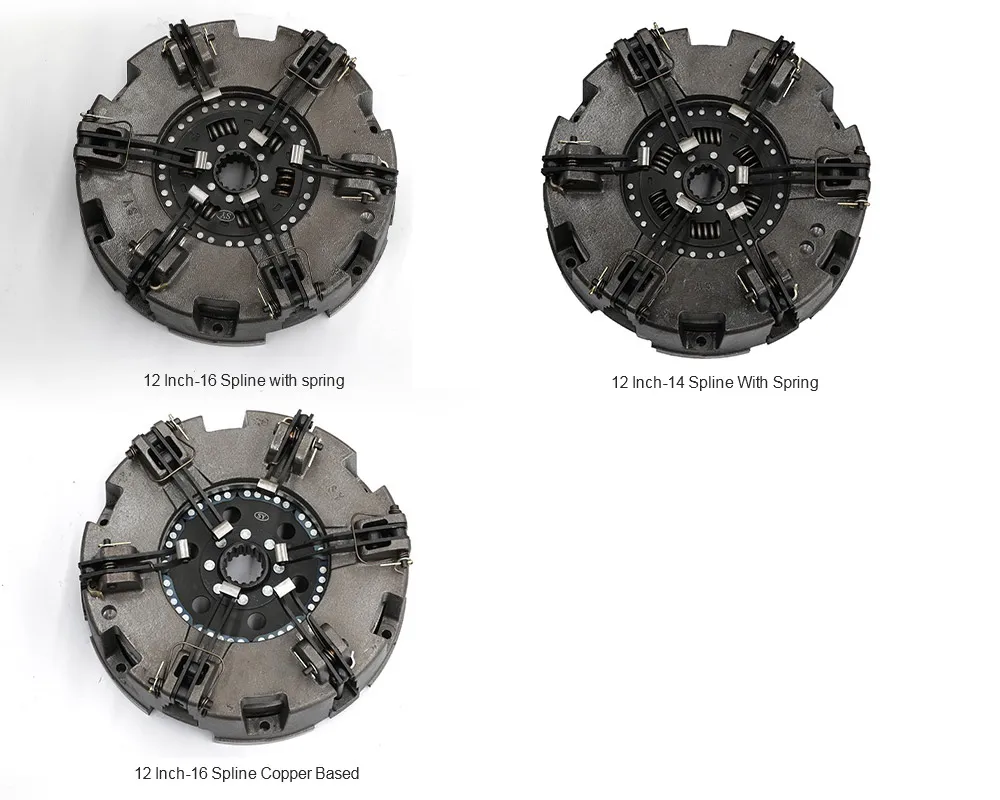

| OEM NO. | 231004919 |
| Type | Dual Clutch |
| Size | 310mm, 12 inch, |
| Main Drive Plate | 310-45*40-16N |
| PTO Plate | 310-28*24-10N |
This tractor clutch kit suitable for New Holland, Case I.H, Farmall, FIAT, Ford, Massey Ferguson,YTO tractor. This is a 12 inch dual clutch ,replaces part no. 231004919.

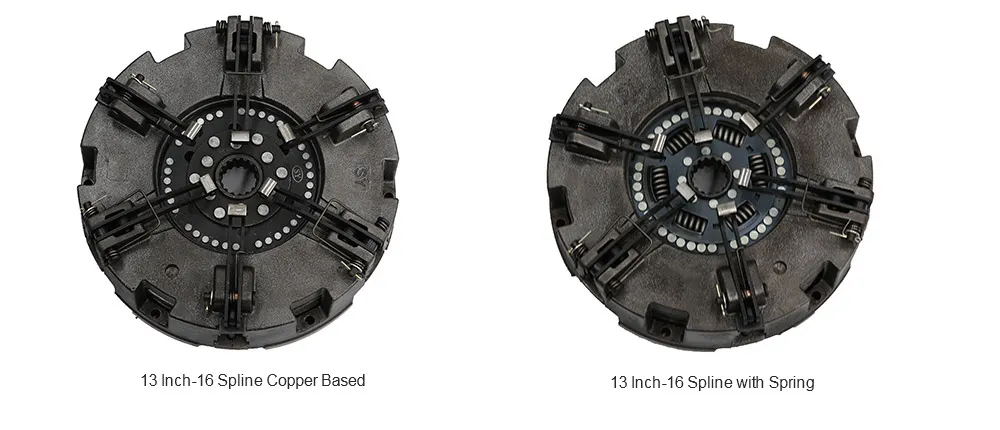

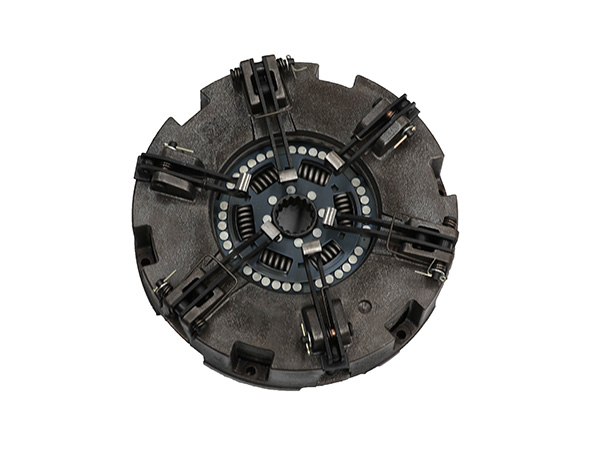

| Type | Dual Clutch |
| Size | 330mm, 13 inch, |
| Main Drive Plate | 330-45*40-16N |
| PTO Plate | 330-28*24-10N |
| Hub of Main Plate | 45*40-16N |
| Hub of PTO Plate | 28*24-10N |
This tractor clutch kit suitable for many brands tractors like New Holland, Case I.H, Farmall, FIAT, Ford, MF,YTO ,this is a 13 inch dual clutch kit ,16 spline. Clutch disc has 2 types : bronze and asbestos – free .
This tractor clutch kit suitable for many tractors like
Case I.H, Farmall, FIAT, Ford, Valmet Valtra, YTO , replaces 1964058C1 ,1964058C2 ,1964059C1 ,1964061C1 ,3226552R91 and many other OEM numbers.

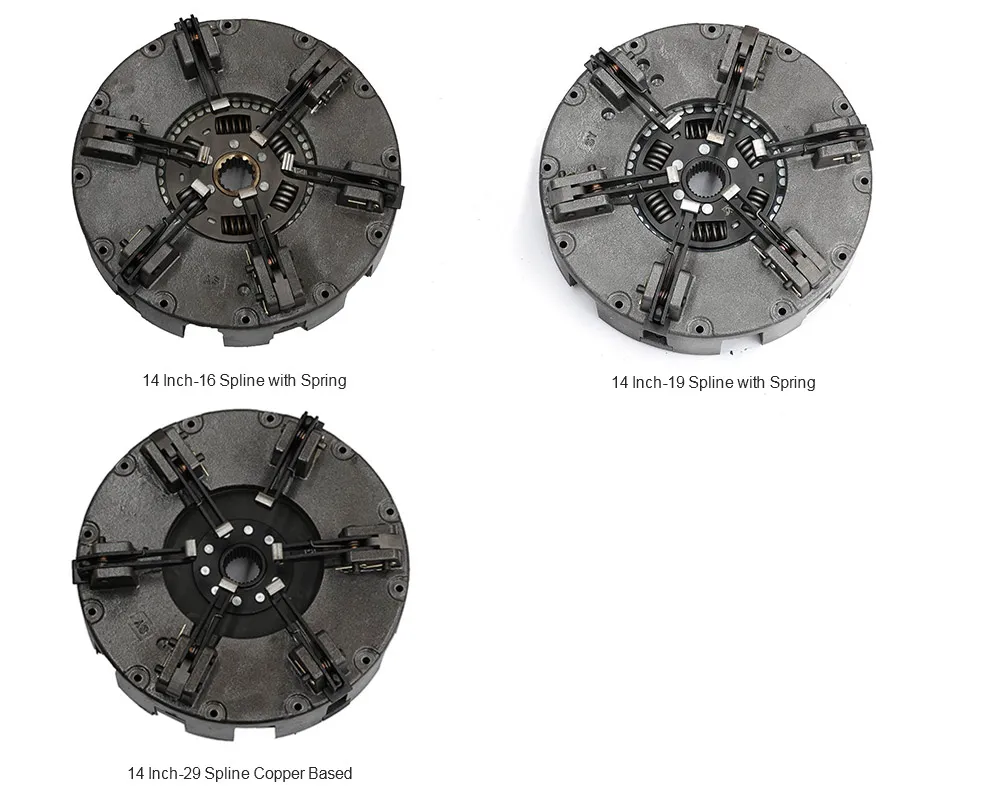

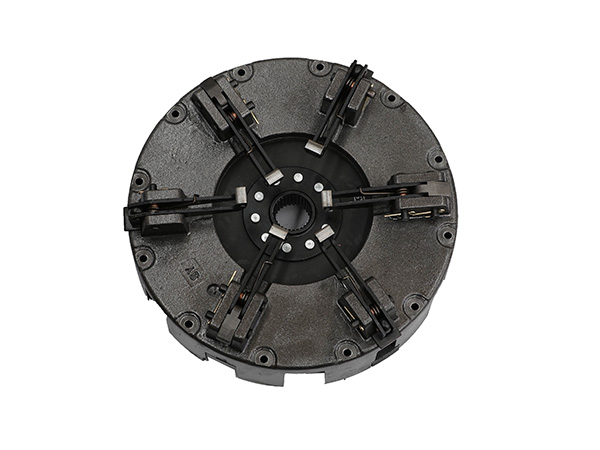

| Type | Dual Clutch |
| Size | 350mm, 14 inch |
| Main Drive Plate | 350-45.75*42.12-29 spline |
| PTO Plate | 350-30*27-16 spline |
| size of Main Plate | 350mm |
| size of PTO Plate | 350mm |
| Hub of Main Plate | 45.75*42.12mm-16teeth |
| Hub of PTO Plate | 30*27mm-10teeth |
This type also have 16 spline and 19 spline type.
This tractor clutch kit suitable for YTO tractors ,replaces YTO wheel tractor parts E500.21.012C.
| Type | Dual Clutch |
| Size | 280mm, 11 inch |
| Main Drive Plate | 280-39*34.26-18N |
| PTO Plate | 280-24.75*21.23-15N |
