| Model | 12 Inch 10 Spline | 12 Inch 21 Spline-1 | 12Inch 21 Spline-2 | 13Inch 21 Spline |
| Size | 12 inch | 12 inch | 12 inch | 13 inch |
| Spline | 10 | 21 | 21 | 21 |
| Material | Asbestos free | Asbestos free | copper based friction materials | copper based friction materials |
| OD | 302MM | 302MM | 302MM | 325MM |
| Hub | 28.575*23.35mm | 29.08*25.4mm | 29.08*25.4mm | 29.2*25.5mm |
| Pad | 5 | 5 |
Product support customization, if necessary,
contact us or leave a message

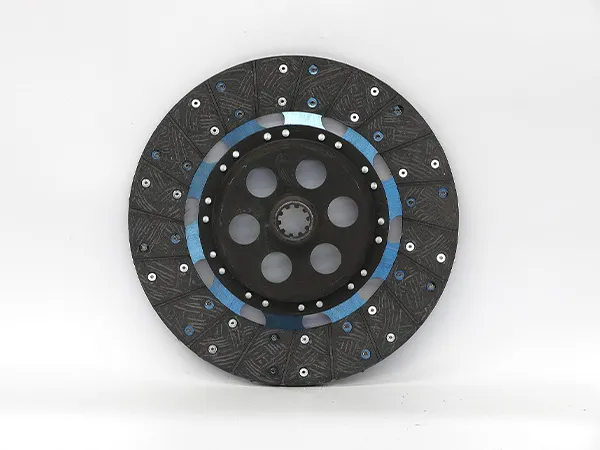

This clutch disc is 12 inch with 10 spline. Hub size is 28.575*23.35mm. It is made of asbestos free friction material .The asbestos free friction material has good thermal conductivity, smooth frictional engagement, good wear resistance and long service life and this organic material has good mechanical strength and physical properties, stable friction coefficient, high temperature resistance, wear resistance, stable braking, repairing damaged brake discs, environmental protection, long service life without noise, etc.

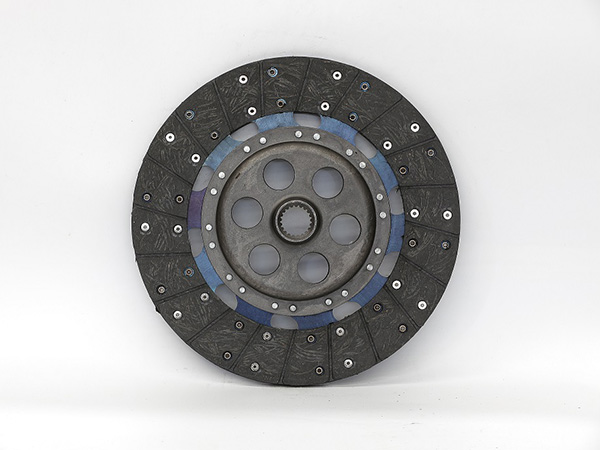

This clutch disc is 12 inch with 21 spline. Hub size is 29.08*25.4mm. It is made of asbestos free friction material .The asbestos free friction material has good thermal conductivity, smooth frictional engagement, good wear resistance and long service life and this organic material has good mechanical strength and physical properties, stable friction coefficient, high temperature resistance, wear resistance, stable braking, repairing damaged brake discs, environmental protection, long service life without noise, etc.
This clutch disc is 11 inch with 21 spline. Hub size is 29.08*25.4mm, material is copper based. Existing tractor main clutch discs are widely used copper based friction materials , which have good wear resistance, large friction force during braking, and small loss to the hub. High-quality bronze sintered brake pads are made of advanced friction material copper-based metal and sintered at high temperature. High temperature resistance 600-700 ℃, strong wear resistance, good thermal conductivity, smooth frictional engagement, and long service life，it can play an instant braking effect in any environment and temperature. So this material is widely used for agricultural machinery clutches, such as tractors.

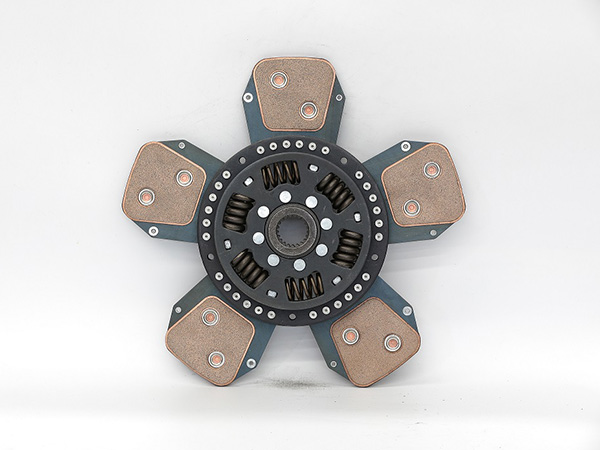

This clutch disc is 13 inch with 21 spline. Hub size is 29.2*25.5mm, material is copper based. Existing tractor main clutch discs are widely used copper based friction materials , which have good wear resistance, large friction force during braking, and small loss to the hub. High-quality bronze sintered brake pads are made of advanced friction material copper-based metal and sintered at high temperature. High temperature resistance 600-700 ℃, strong wear resistance, good thermal conductivity, smooth frictional engagement, and long service life，it can play an instant braking effect in any environment and temperature. So this material is widely used for agricultural machinery clutches, such as tractors.
This clutch disc is made of asbestos free friction material .The asbestos free friction material has good thermal conductivity, smooth frictional engagement, good wear resistance and long service life and this organic material has good mechanical strength and physical properties, stable friction coefficient, high temperature resistance, wear resistance, stable braking, repairing damaged brake discs, environmental protection, long service life without noise, etc.
This clutch disc is made of asbestos free friction material .The asbestos free friction material has good thermal conductivity, smooth frictional engagement, good wear resistance and long service life and this organic material has good mechanical strength and physical properties, stable friction coefficient, high temperature resistance, wear resistance, stable braking, repairing damaged brake discs, environmental protection, long service life without noise, etc.
